Super Stainless Steel 254 SMO (UNS S31254)
254 SMO is a high-alloy austenitic stainless steel designed for use in seawater and other aggressive chloride-bearing media. Known technically as a "6% Moly" grade, it contains high levels of molybdenum, chromium, and nitrogen. This combination provides a Pitting Resistance Equivalent Number (PREN) of ≥ 42, placing it in the "Super Austenitic" category. It offers significantly higher strength and corrosion resistance than the 316 series, often serving as a bridge between stainless steels and expensive nickel-based superalloys.
At Aries Alloys, we supply 254 SMO to industries where chloride-induced stress corrosion cracking and pitting are the primary threats. It is the preferred material for offshore oil and gas, desalination, and bleaching plants where standard grades fail within months.
Key Performance Benefits
- Extreme Pitting Resistance: The 6% molybdenum content provides exceptional defense against localized attack (pitting and crevice corrosion) in stagnant seawater.
- Chloride SCC Immunity: Much higher resistance to chloride-induced stress corrosion cracking compared to the 300-series austenitic steels.
- High Mechanical Strength: Offers nearly twice the yield strength of 300-series stainless steels, allowing for thinner-walled components and weight savings.
- Nitrogen Strengthening: The addition of nitrogen (0.18-0.25%) enhances both the pitting resistance and the structural stability of the alloy.
- Excellent Weldability: Can be easily welded using standard techniques, though it is recommended to use over-alloyed fillers (like Alloy 625) to prevent alloy depletion in the weld metal.
Technical Profile & Composition
The Power of 6% Moly:
The defining characteristic of 254 SMO is its Molybdenum (6.0-6.5%) content. In chloride environments, molybdenum acts as the primary stabilizer for the protective passive film. When combined with Chromium (19.5-20.5%) and Nickel (17.5-18.5%), the result is an alloy that thrives in high-chloride process streams.
Mechanical & Physical Data:
- Density: 8.0 g/cm^3
- Yield Strength: ≥ 300 MPa (44,000 psi)
- Impact Toughness: Maintains excellent ductility and impact strength at both ambient and cryogenic temperatures.
- Non-Magnetic: Remains non-magnetic in the annealed and as-welded conditions.
Primary Industrial Use Cases
Aries Alloys is a strategic supplier of 254 SMO for the most aggressive chloride environments:
- Offshore Oil & Gas: Seawater cooling systems, firewater systems, and subsea hydraulic lines.
- Desalination Plants: High-pressure reverse osmosis piping, pumps, and brine-handling equipment.
- Pulp & Paper: Bleach plant washers, vats, and press rolls exposed to chlorine dioxide and chlorates.
- Flue Gas Desulfurization (FGD): Scrubber linings and ductwork in power plants handling acidic gases.
- Chemical Processing: Equipment used for the production of halides and other aggressive chemicals.
Product Availability at Aries Alloys
We stock and supply 254 SMO in accordance with ASTM A240, A276, and A312:

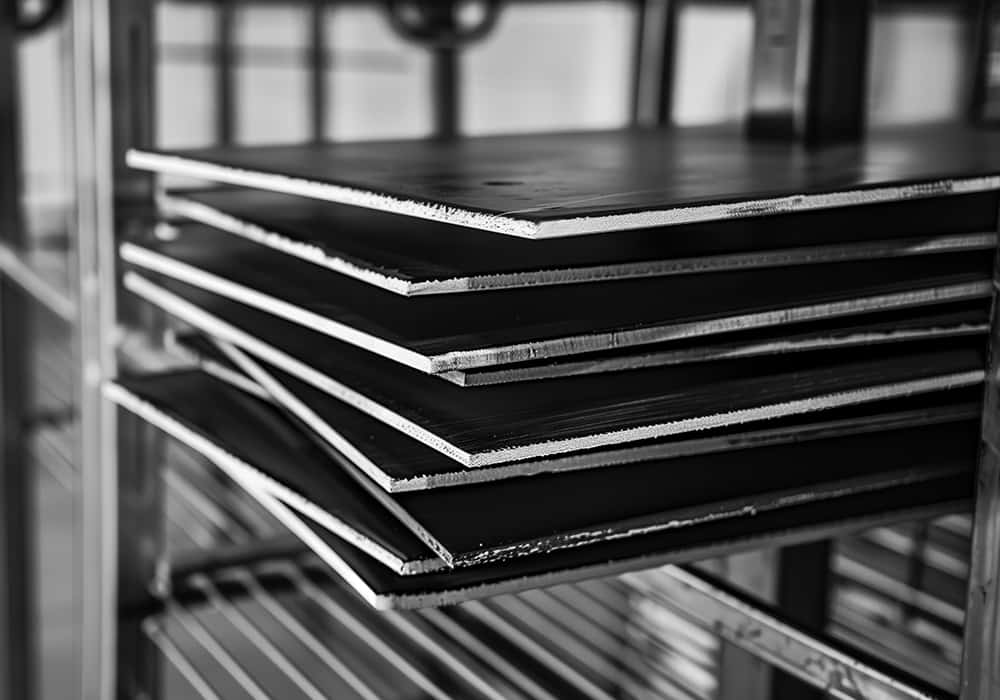

- Plates & Sheets: Large-gauge plates for the fabrication of tanks and scrubber vessels.

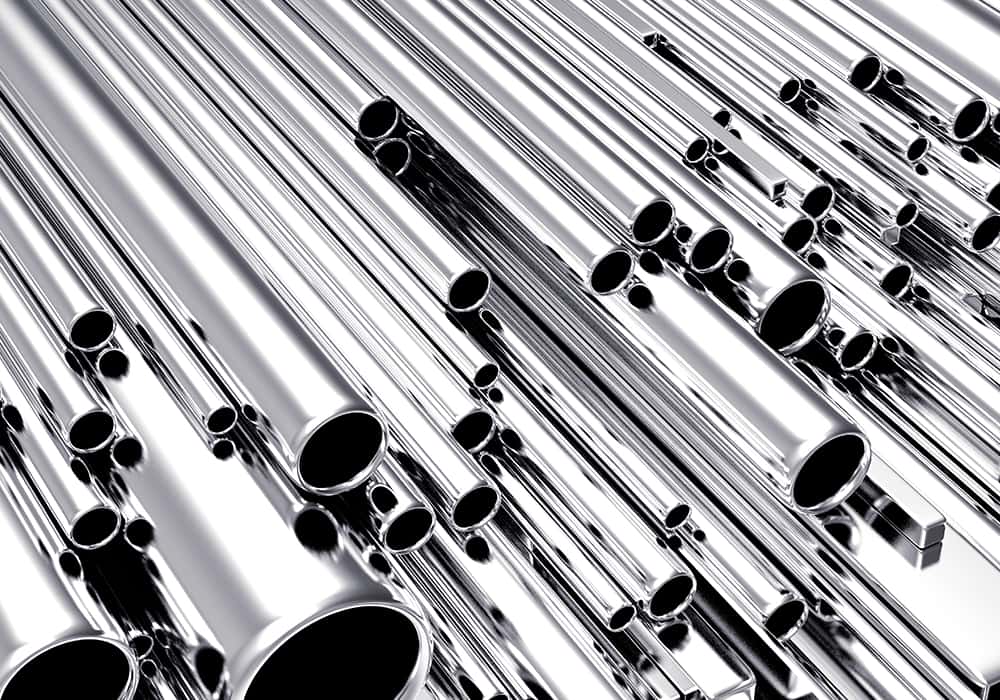

- Seamless & Welded Pipes: High-durability piping for seawater intake and chemical transport.

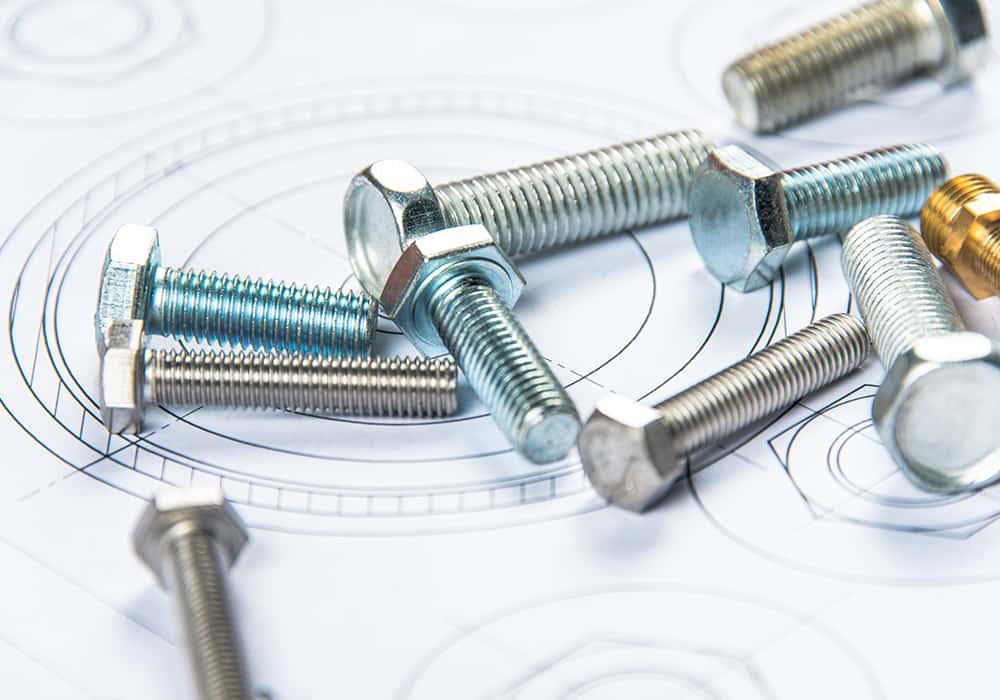

- Round & Hex Bars: Precision rods for machining high-strength, corrosion-resistant shafts and bolts.

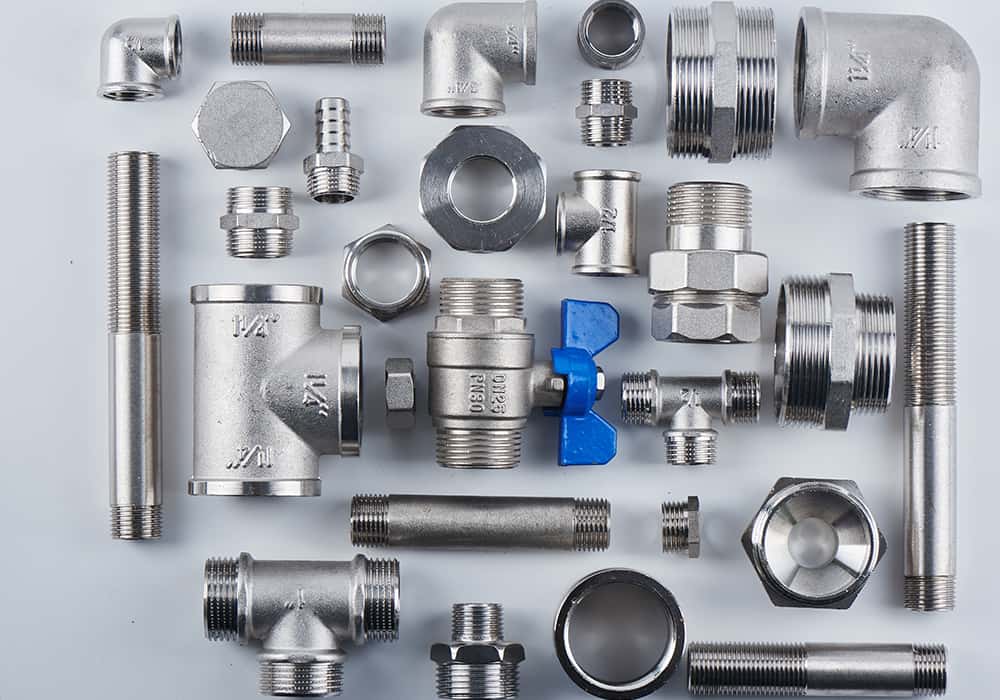

- Custom Forgings: Flanges and elbows designed for high-integrity, leak-proof connectivity.
