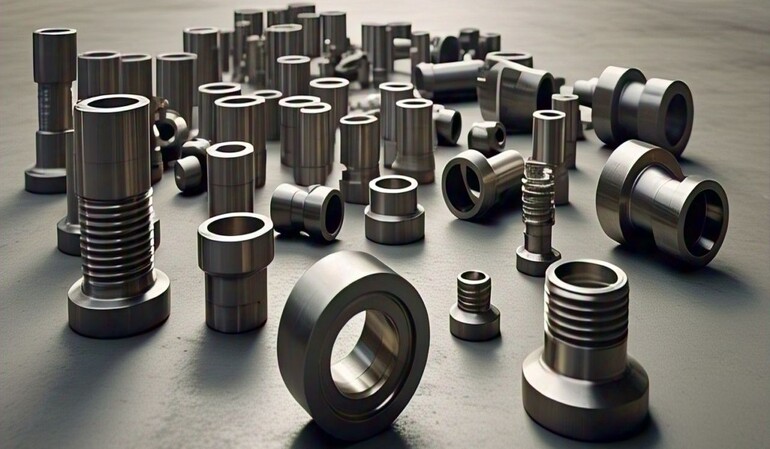

Titanium Pipe Fittings: Strength, Composition, and Industrial Applications
Titanium pipe fittings are an essential component in various industries due to their exceptional strength, corrosion resistance, and lightweight properties. Manufactured using high-quality titanium, these fittings are ideal for applications in aerospace, marine, medical, and industrial sectors. The unique properties of titanium, including its superior mechanical and chemical composition, make it the preferred choice for high-performance applications requiring durability and precision.
Why Choose Titanium Pipe Fittings?
Titanium pipe fittings are highly valued for their:
- Corrosion Resistance: Exceptional durability against oxidation and rust, even in extreme environments.
- High Strength-to-Weight Ratio: Strong yet lightweight, making them ideal for demanding applications.
- s
- Heat and Pressure Resistance: Withstands extreme temperatures and high-pressure conditions.
- Ductility and Machinability: Easy to shape, cut, and weld for customized applications.
Chemical Composition of Titanium Pipe Fittings
Titanium pipe fittings are available in various grades, each with specific chemical compositions suited for different industrial needs.
Commercially Pure Titanium Grades (Grade 1 to 4)
Element |
Grade 1 (%) |
Grade 2 (%) |
Grade 3 (%) |
Grade 4 (%) |
Titanium (Ti) |
99.7 |
99.5 |
99.4 |
99.2 |
Oxygen (O) |
0.18 |
0.25 |
0.35 |
0.40 |
Iron (Fe) |
0.20 |
0.30 |
0.30 |
0.50 |
Carbon (C) |
0.08 |
0.08 |
0.08 |
0.08 |
Nitrogen (N) |
0.03 |
0.03 |
0.05 |
0.05 |
Hydrogen (H) |
0.015 |
0.015 |
0.015 |
0.015 |
Titanium Alloys (Grade 5 and Grade 23 ELI)
Element |
Grade 5 (Ti-6Al-4V) (%) |
Grade 23 (Ti-6Al-4V ELI) (%) |
Titanium (Ti) |
Balance |
Balance |
Aluminum (Al) |
5.5 - 6.75 |
5.5 - 6.5 |
Vanadium (V) |
3.5 - 4.5 |
3.5 - 4.5 |
Iron (Fe) |
0.40 max |
0.25 max |
Oxygen (O) |
0.20 max |
0.13 max |
Carbon (C) |
0.08 max |
0.08 max |
Nitrogen (N) |
0.05 max |
0.03 max |
Hydrogen (H) |
0.015 max |
0.012 max |
Mechanical Properties of Titanium Pipe Fittings
The mechanical properties of titanium pipe fittings vary based on their grade and composition.
Commercially Pure Titanium (Grades 1-4):
- Tensile Strength: 240-550 MPa
- Yield Strength: 170-485 MPa
- Elongation: 15-30%
- Hardness: 80-200 HB
Titanium Grade 5 (Ti-6Al-4V):
- Tensile Strength: 895 MPa min
- Yield Strength: 828 MPa min
- Elongation: 10%
- Hardness: 330 HB max
Titanium Grade 23 (Ti-6Al-4V ELI):
- Tensile Strength: 860 MPa min
- Yield Strength: 795 MPa min
- Elongation: 10%
- Hardness: 280-320 HB
Applications of Titanium Pipe Fittings
Titanium pipe fittings are widely used in various industries, including:
- Aerospace: Hydraulic systems, fuel lines, and aircraft structural components.
- Marine: Shipbuilding, offshore platforms, and seawater piping systems.
- Medical: Surgical implants, prosthetics, and dental applications.
- Chemical Processing: Pipelines, reactors, and heat exchangers handling corrosive substances.
- Power Generation: Nuclear, geothermal, and desalination plants requiring corrosion-resistant fittings.
Why Choose Our Titanium Circles?
Titanium pipe fittings offer outstanding strength, corrosion resistance, and reliability, making them a preferred choice across multiple industries. With superior chemical and mechanical properties, they provide longevity and efficiency in demanding applications. For high-quality titanium pipe fittings customized to your requirements, contact us today!
